Workpiece positioners
QR-WP-TSC-5kN

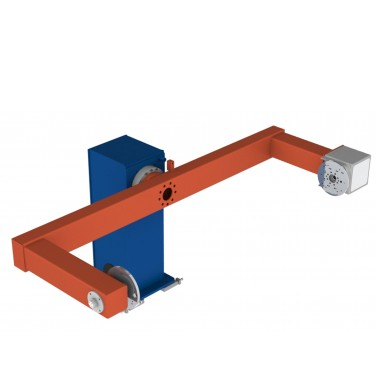

The workpiece positioner has a horizontally arranged swivelling axis. An extension arm with integrated turning axis with counter bearing is mounted on this axis. The workpiece can be turned and swivelled. Due to the workpiece light to medium-weight, long and complex workpieces can be welded.
Technical Data
| Load | 5,0 |
| Free-turning radius | 700-800 mm |
| Grid free-turning radius | 100 |
| Clamping length | 1000 - 3000 mm |
| Rotating speed | 120,0 |
| swivelling speed | 90,0 |
| Turning range | +/- 360° |
| Swivelling radius | 1200 |
| Swivelling range | +/- 185° |
Technical features
2 digital drive systems
Indexing of the 0 position for motor change
Clamping length and free-turning radius can be adapted to the component size and the space on site.
Adjusting screws for precise alignment during mounting
Opening in steel construction for a good accessibility during service works
Service-friendly direct drives
Repeatability less than 0.1 mm
Very high travelling speed
Available options
Holding angle for mounting the workpiece fixtures
Non-stop rotation of the faceplate
Counter bearing to be moved manually (M)
Pneumatic indexing of the 0 position at the counter bearing
Clamping stroke mounted on counter bearing (S)
