Robot positioners
QR-RP-CT-5kN-200

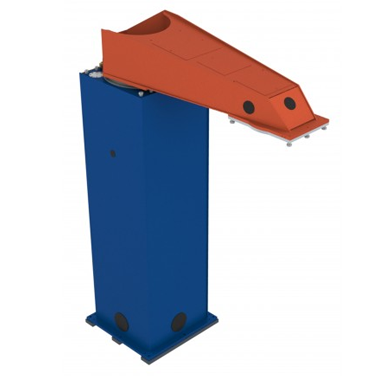

The C-shaped frame with rotating extension arm positions the robot overhead. The rotating extension arm increased the working range of the robot thus enabling to weld high-volume workpieces and/or serves for the change between two working stations. The rotating C-frame is directly mounted on the floor or a floor-mounted linear track.
Technical Data
| Load | 5,0 |
| Robot height | 2800-4800 mm |
| Reach | 1200-2000 mm |
| Swivelling speed | 70,0 |
| Swivelling range | +/- 160° |
Technical features
A fully synchronised robot axis
Indexing of the 0 position for motor change
Adjusting screws for precise alignment during mounting
Opening in steel construction for a good accessibility during service works
High repeatability (± 0.1 mm) because of spring-pretensioned toothed wheel connections
Available options
Reach adaptation
Adaptation of the robot mounting height
