QIROX Sensor systems

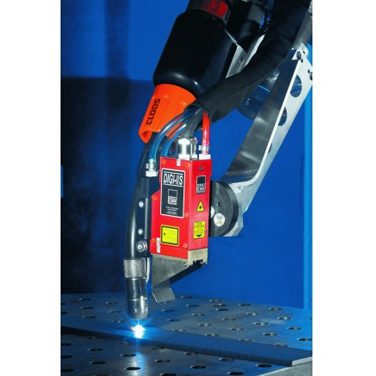

CST FLEX-S NETMASTER Sensor System
The operation of the CLOOS laser online sensor opens up completely new application areas for automated welding. The laser online sensor first moves to the programmed start position. The tracking section is then measured online during welding. These sensors are used in nearly any application ranges. During welding the weld geometry is measured and the welding parameters are adaptively adjusted.
Technical Data
| Measuring distance | 100 |
| Vertical field of view | 65 |
| Horizontal field of view | 35 (23-46) mm |
| Resolution horizontal | 35 |
| Resolution vertical | 60 |
| Min. side height | 1,0 |
| Gap width min. | 1,0 |
| Max. tracking speed | 200 |
| Dimensions (mm) | L:35 B:60 H:172.4 |
| Laser protection class | 3B |
| Safety distance | 2,0 |
Technical features
Direct connection to the QIROX robot controller
For the most varied weld seam shapes
Integrated quality control with interruption n the case of tolerance deviations
Online compensation of workpiece tolerances
Weld parameter selection in the case of weld geometry changes
Tracking of weld start and weld end
Available options
Holding angle for mounting the workpiece fixtures
Rotary distributor for media supply
Counter bearing to be moved by motor (E)
Counter bearing to be moved manually (M)
Pneumatic indexing of the 0 position at the counter bearing
Clamping stroke mounted on counter bearing (S)
