Compact systems

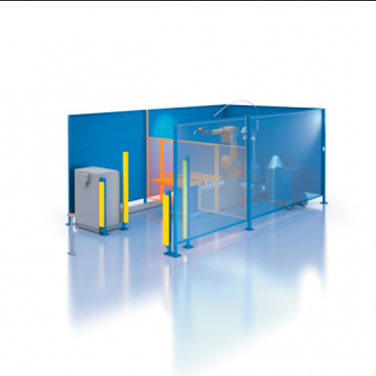

QIROX QR-CS-10-10kN Compact system
The QIROX QR-CS-10 compact system is equipped with an automated rotary table. By means of a motor-drive rotary axis the positioner and thus the component to be welded is exactly positioned. All robot and positioner axes are fully synchronised. This provides excellent welding results, reduces the secondary processing times and speeds the entire process run enormously.
Technical Data
| Nominative load capacity | 1000 kg |
| Height | 2500 mm |
| Clamping surface (max.) | 2000 x 1050 mm |
| Total weight | max. 2100 kg |
| Dimensions | (L/W/H)3700 x 2400 x 2500 mm |
Overview of your benefits
Compact
Just integrate the systems into your production – the compact design saves production surface.
User-friendly
Use our comfortable operating panels – we guarantee easy, precise and intuitive handling.
Reliable
Count on “Made in Germany" – as technology leader we guarantee maximum performance in proven CLOOS quality.
Flexible
Realise individual extensions and retrofits – the modular design makes it possible.
Time-saving
Benefit from easy assembly and maintenance – our compact systems are completely pre-installed electrically and mechanically.
