Compact cells

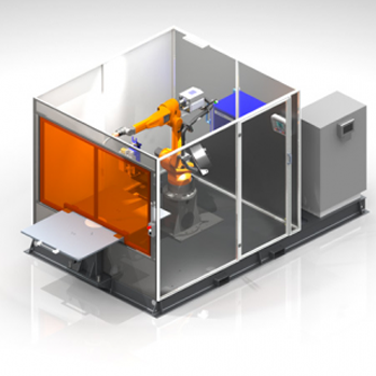

QIROX Compact cell QR-CC-1.1
The QIROX QR-CC-1 compact cell is a “Ready to weld" system which has a manual rotary table. The station change is made by means of a horizontal rotation. By means of a pneumatic indexing the positioner and thus the component to be welded is exactly positioned. All robot and positioner axes are fully synchronised. This provides excellent welding results, reduces the secondary processing times and speeds the entire process run enormously.
Technical Data
| Nominative load capacity | 100 kg |
| Loading height | 900 mm |
| Clamping surface (per side) | 700 x 950 mm |
| Dimensions | (L/W/H)3700 x 2400 x 2500 mm |
| Total weight. | max 2500 kg |
Overview of your benefits
Compact
Just integrate the cells into your production – the compact design facilitates transportation and saves production area.
Plug & Weld
Benefit from easy assembly and maintenance – our compact cells are delivered ready to weld and are completely pre-installed.
Flexible
Use the compact cells for numerous applications and realise individual extensions and retrofits at any time – the modular design makes it possible.
User-friendly
Use our comfortable operating panels – we guarantee easy, precise and intuitive handling.
Reliable
Count on “Made in Germany" – as technology leader we guarantee maximum performance in proven CLOOS quality from a single source.
